Product

Product

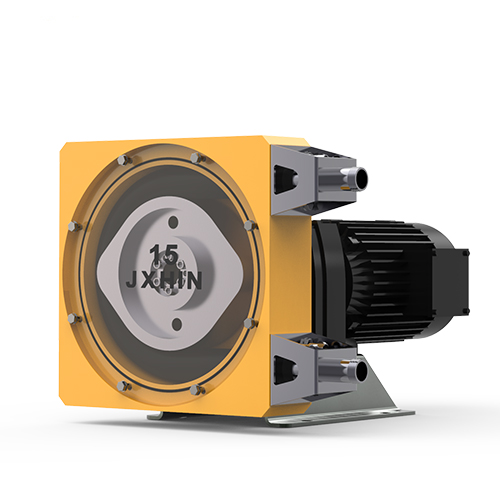

JXHIN-15

Pump size:DN15 Flange,Max flow:525 l/h


standard:0.55kw Variable frequency motor


Suction ability up to 9.5   meters and self-priming
Dry-run   without damage
For   high viscosity or shear sensitive medium

No   leaking, no block. No sealing gasket, ball, diaphragm, immersion rotor,   stator and piston etc.
Pumping   abrasive slurries, corrosive acids, large solids       and gas-liquid mixture.
No   internal leakage. Flow stability, can accurate and repeatable measurement.   Accuracy ±1%
No   ancillary equipment, check valves or water flush systems
Reversing   operation, particle can safety out from suction or discharge pipe
◆Minimal   maintenance-just change the hose
 ◆Reliable quality, low using cost

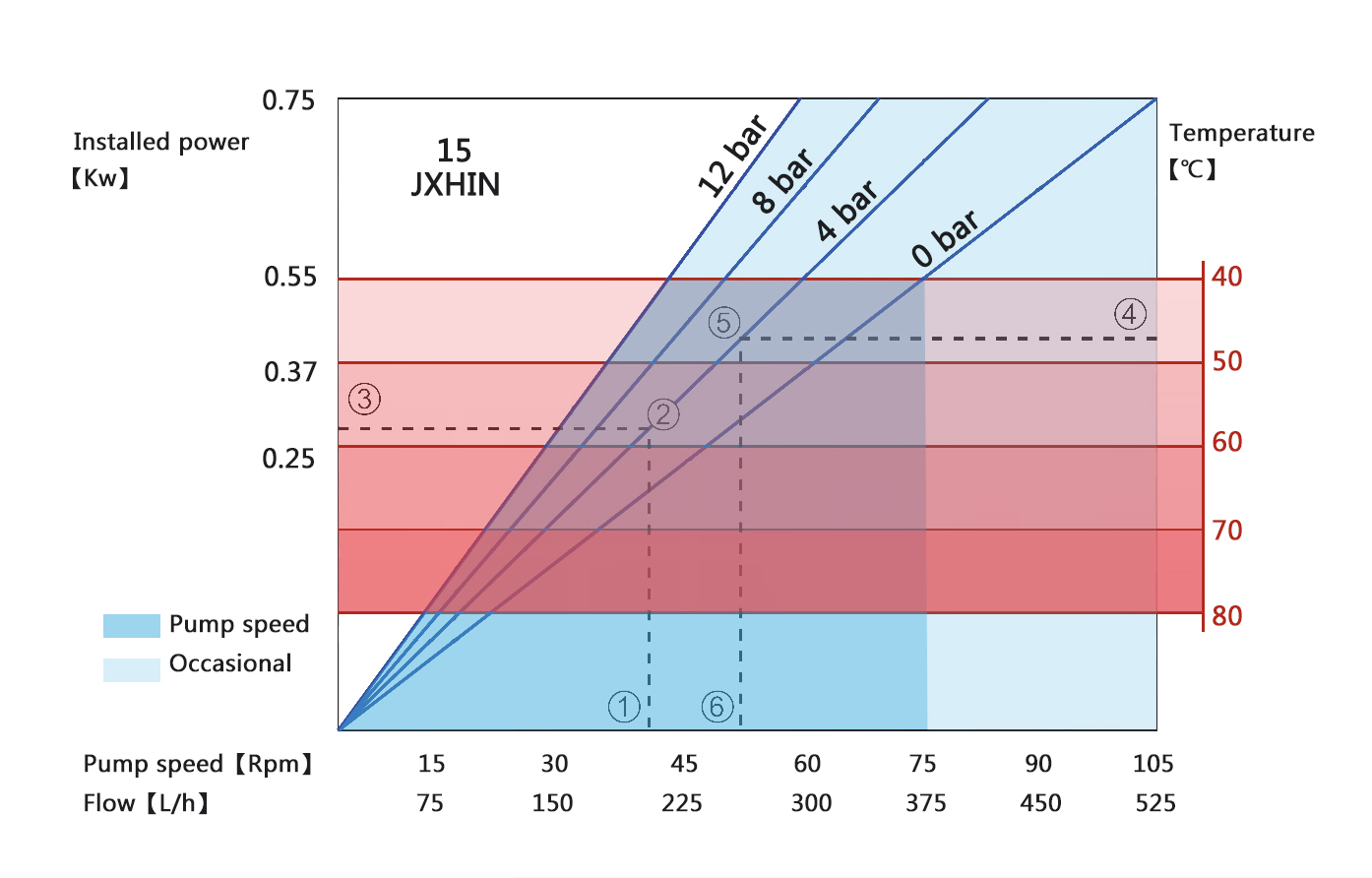

Flow  rate measured with water of 20℃, out   pressure show as following chart




Product   information

Inlet/outlet

DN15 FLANGE


Motor power

0.75KW


Max flow

0.08 l/min


Max head

160m


Max discharge pressure

16 Bar


Lubricant required

0.5 L


Max temperature

80


Hose options

Chlorosulfonated polyethylene rubber(CSM) Natural   rubber(NR)
  foodgrade hose(F NBR)  nitrile   rubber(NBR)  EPDM

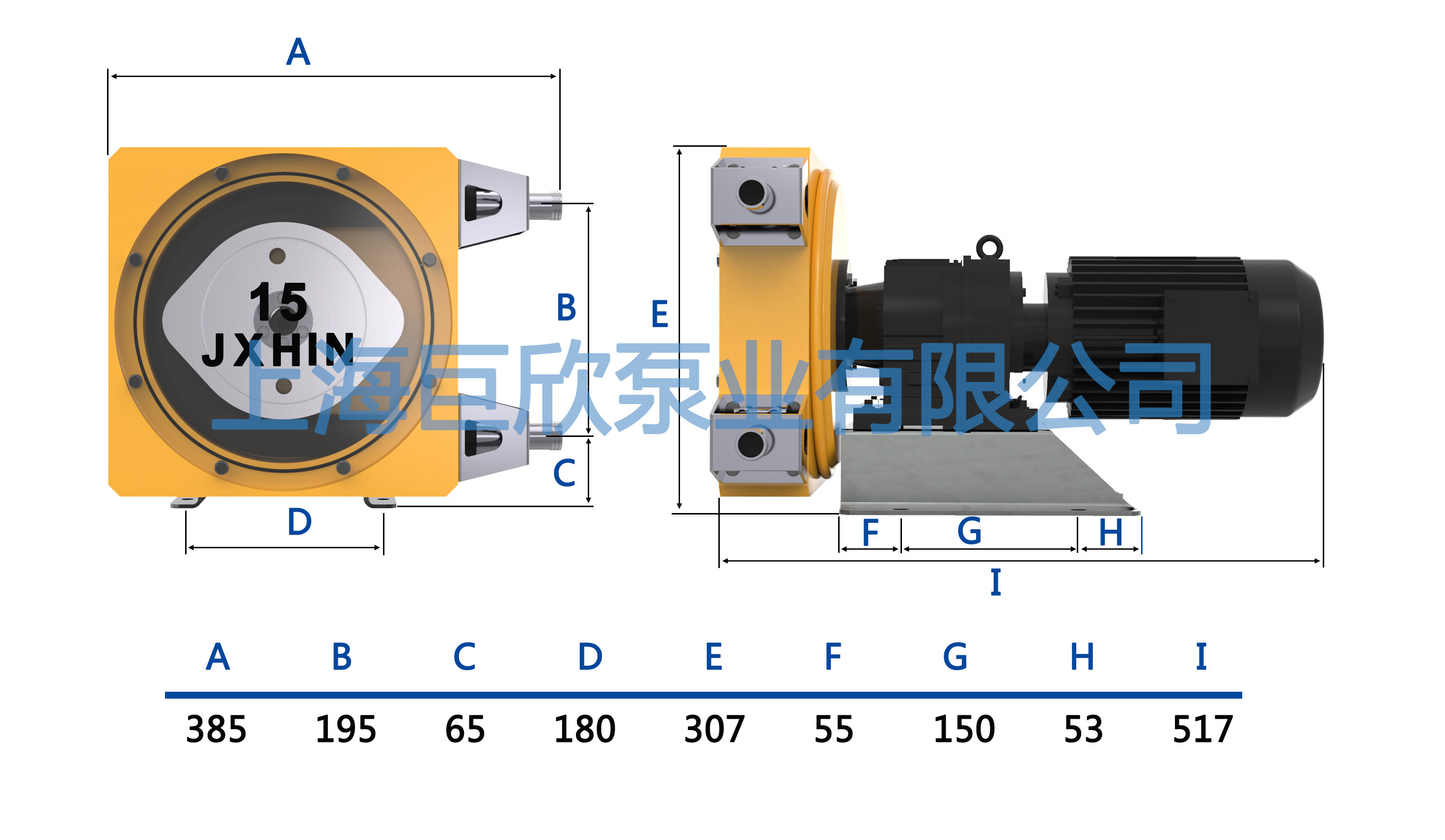

Installation   size (mm)
